Model: MK-2327PG-22DP
SKU: MK-2327PG-22DP- 1pack
Product Features

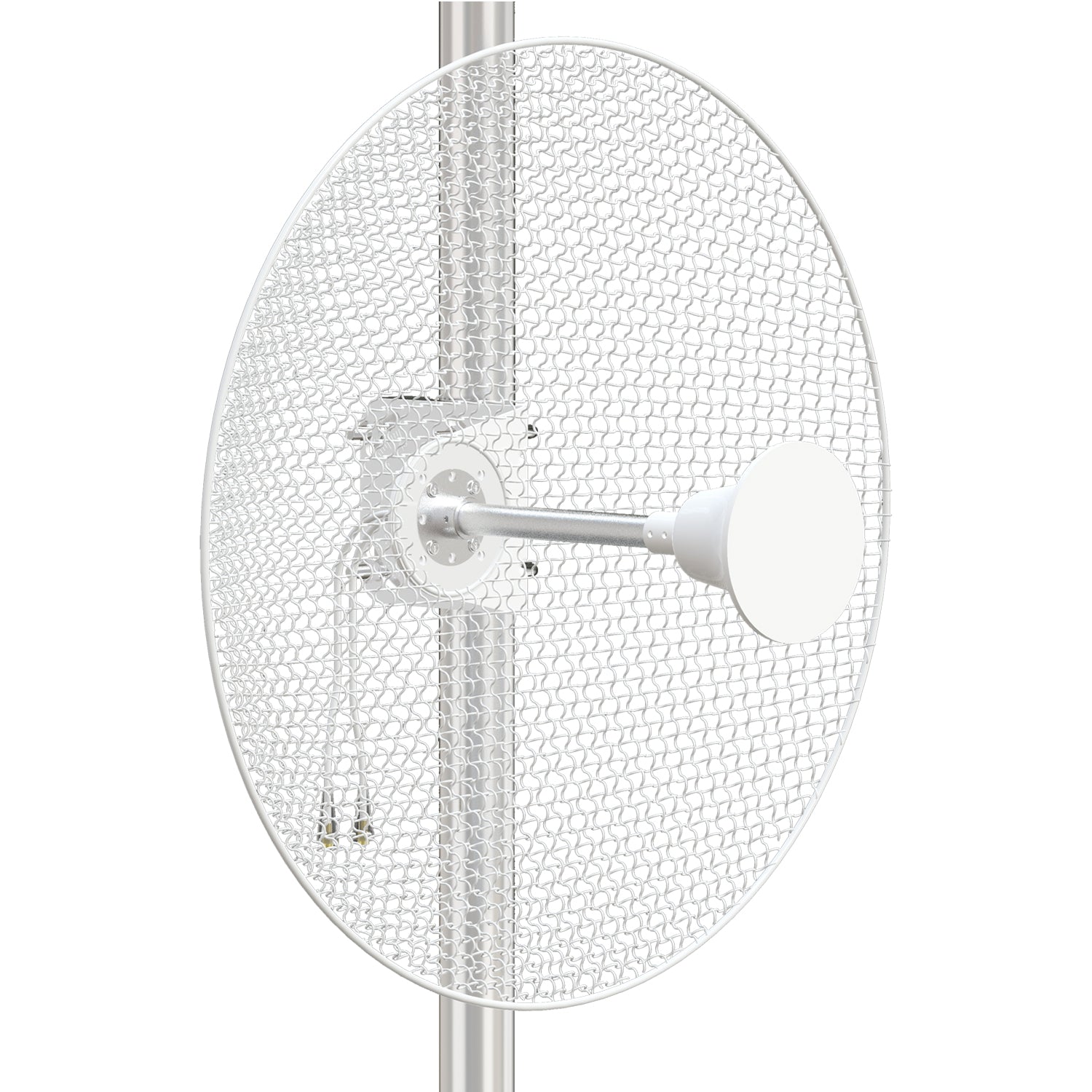

2 feet MIMO Grid Dish
Dual Polarization, V&H or Dual Slant +/- 45
Light weight， Less Wind Load
Two RP-SMA Connector Cables Link to Feed Directly, Reduced Connector Loss
Easy Installation
Shipping
1 PCs per Box, Minimum order 1 PCs
Shipping Box 25 x 24 x 7 inches (1 PCs)
Dimension Shipping Weight 25 lbs (1 PCs)
Technical Specifications
|
Model |
MK-2327PG-22DP |
|
Frequency Range |
2.3-2.7GHz |
|
Gain |
22dBi |
|
Polarization |
Dual Linear ( V/H ) |
|
Beamwidth Vertical |
11° |
|
Beamwidth Horizontal |
13° |
|
Front-To-Back Ratio |
>25dB |
|
Isolation |
>28dB |
|
VSWR |
≤ 1.5:1 typ; max 2.0 |
|
Maximum Power Per Port |
50W |
|
Impedance |
50Ω |
|
Lightning Protection |
DC Ground |
|
Dimensions |
Φ600mm |
|
Weight |
2.5kg |
|
Antenna Color |
White |
|
Mount |
Pole (Φ30-70mm) |
|
Connector Type |
2-RPSMA/N Female |
|
Operational Temperature |
-55 °C to +70 °C |
|
Operational Humidity |
≤ 95% |
|
Survival Wind Speed |
200km/h |
|
Shipping Dimensions ( H x W x D ) |
65x62x20cm （2-Pack） |
|
Gross Weight |
6.4kg （2-pack） |
Antenna Patterns
Vertical Pattern Horizontal Pattern
Installation Diagram
