Model: LQS-POE24
Product Feature

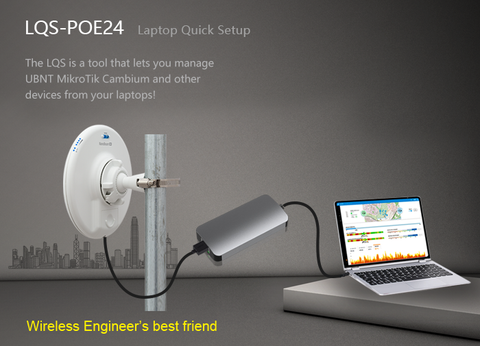

Laptop Quick Setup Tool, Wireless Engineers must have.
The LQS is a tool that let you manage UBNT MikroTik Cambium and other devices from your laptop.
- 24V Passive POE for wireless Bridge, AP, Router, etc. Power input and data transmission from laptop USB C port
- Compatible with Windows XP/Vista/win7/win8.1/win10(32/64 bit) system, Linux system；Win8.1 or above driver free
- Supports IEEE 802.3az (Energy Efficient Ethernet), compatible with IEEE 802.3/802.3u and 802.3ab
- Integrated 10/100/1000Mbps Ethernet Port, support Auto MDI/MDIX
- Support IPv4/IPv6 network protocol
- Integrates USB 3.0 PHY and Controller and compatible with USB 3.0, 2.0 and 1.1 specifications
- Built in ESD device can withstand ± 4KV static electricity, can effectively avoid the static electricity damage to the chip caused by hot plugging
- Pure copper core wire, stable transmission
- The solid aluminum alloy enclosure, wear-resistant and corrosion-resistant, can prolong the service life of the product
Shipping
1 PC per Box
Shipping Weight: 1 lbs
Datasheet
| Model | LQS-POE24 |
| Ethernet interface |
10/100/1000Mbps Ethernet port (Auto MDI/MDIX) POE Output : 24V DC ,pins 4,5(+)；7,8(-) |
| Ethernet Indicator light |
Orange: 100Mbps Blink; Act: Data transmission; Green: 1000Mbps Blink; Act: Data transmission |
| Dimensions | 98.4x55x16.8mm (LxWxH) |
| Line length | 150mm |
| Weight | 60g |
| Working temperature | 5 ~ 60℃ |
| Storage temperature | -20 ~ + 100℃ |
Application
